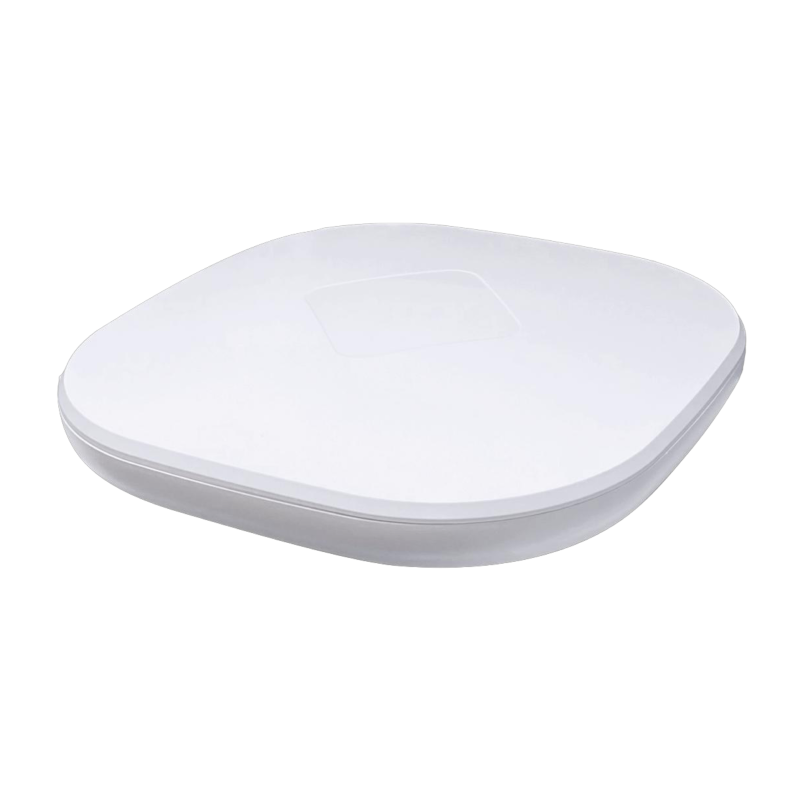

Desk Booking Device Bluetooth Gateway
Desk Booking Device Bluetooth Gateway
Flexopus GmbH
Regular price
€250,00
Regular price
Sale price
€250,00
Quantity
Only for B2B customers!
Couldn't load pickup availability
Desk Booking Device Bluetooth Gateway
COMING SOON
The Bluetooth base station, as an intermediary device between Bluetooth devices and the cloud platform, communicates with the cloud platform through wired Ethernet or WiFi, contains 4 Bluetooth communication channels, small size and lightweight, and can cover 500 Bluetooth terminal devices.
- DC/PoE power supply
- Network cable: RJ45 or WiFi
- BLE 20-meter range
The device is a custom device. You can only order it from this shop.
Specification
| Outer dimension | 220 x 220 x 62.5mm |
| Weight | 440g |
| Case color | White |
| Material | PC + ABS |
| LED | RGB LED * 4 |
| Power Supply |
DC / PoE power supply |
| Ethernet | Support |
| SIM Card | Reserve |
| Input Voltage |
DC Power Supply: 12 V PoE Power Supply: IEEE 802.3af standard |
| Dominant frequency | 480MHz~1.2GHz |
| OS | Linux |
|
Communication protocol |
Gigabit Ethernet |
|
WiFi |
Support 2.4G/5GHz |
| 4G | Reserve |
| BLE transmission frequency | BLE 5.1 |
| BLE transmission range |
20 meter radius |
| Number of covered terminals | 500 |
| Transmission power | 18dBm |
| Working temperature |
0~70°C |
| Storage temperature | -20~75°C |
| Connecting network and data transmission |
Please refer to the document 《Operation Guide for BLE Base Station Connecting Network》 for details |
| Key |
Short press: reset Long press: Distribution network mode |
| LED |
RGB LED indicator light Blue: confirgure network mode Red: Successfully connected to server Green: Successfully connected to the server. |
