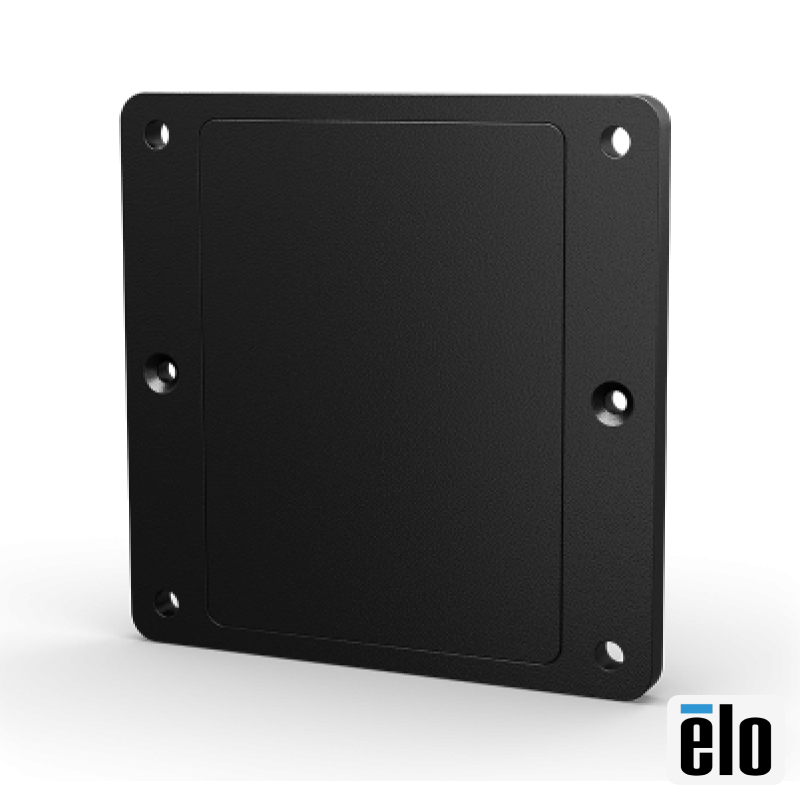

E669163 - ELO PoE-Modul (für I-Serie 4 und 5)

E669163 - ELO PoE-Modul (für I-Serie 4 und 5)

Elo Touch Solutions, Inc.

€97,00
€97,00
Sale Sold out

Only for B2B customers!

Key Features

  • Adds PoE capability to ELO I-Series 4 & 5 All-in-One devices, allowing power via standard Ethernet cable instead of a dedicated power outlet.
  • Supports IEEE 802.3at/802.3bt standards — efficient and reliable power delivery.

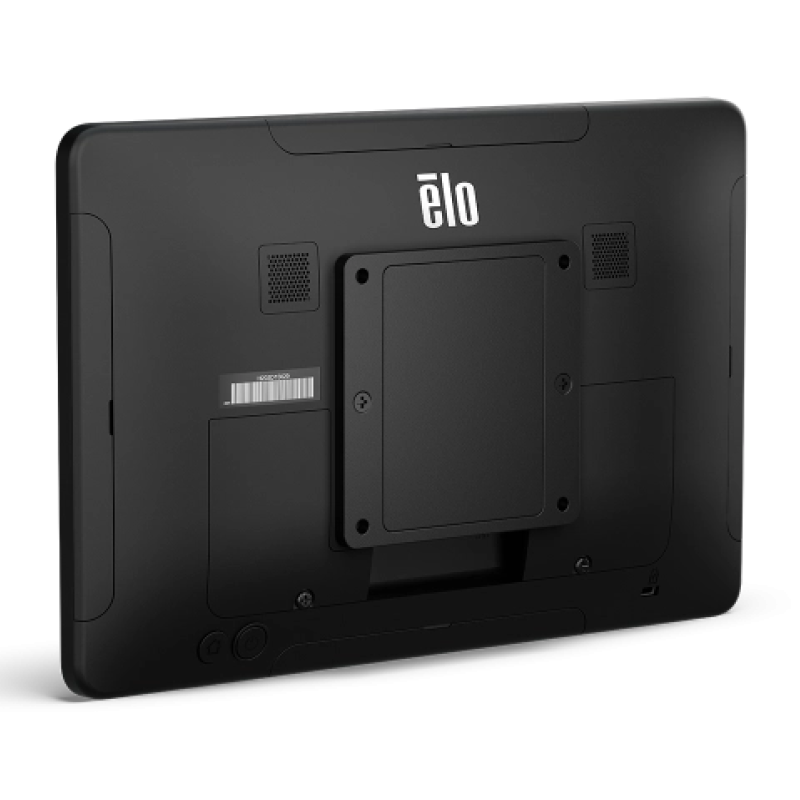

  • Compact and lightweight module with VESA-compatible mounting, ideal for wall-mounted displays, kiosks or meeting-room installations.

Specification

This module injects DC power onto Ethernet cable pairs, simplifying installations (kiosks, conference-room displays) by removing the need for AC power cabling. It supports standard Cat5+ cabling and meets global certification standards, making it suitable for enterprise or retail deployments.

 Part Number E669163
Function
 PoE Injector / Power Supply Module for ELO I-Series 4 & 5 AIO devices
Supported Standards
 IEEE 802.3, 802.3u/ab (10/100/1000BASE-T) / IEEE 802.3at / 802.3bt (PoE)
Transmission Media
 Cat5 or higher (TIA/EIA-568 compliant)
Efficiency > 85% (802.3at), > 79% (802.3bt)
Dimensions
 88 × 88 × 18.8 mm
Weight
 approx. 99 g
Operating Temp. Rate
 0 °C – 40 °C
Storage Temp. Range
 -20 °C – 70 °C
Humidity (Operating) 20% – 80%
Mounting Options VESA 75×75 mm or 100×100 mm
Certifications CE, FCC, IC, VCCI, RCM, UL/cUL
Warranty 2 years
Included in Package PoE module, mounting hardware, Quick Install Guide
