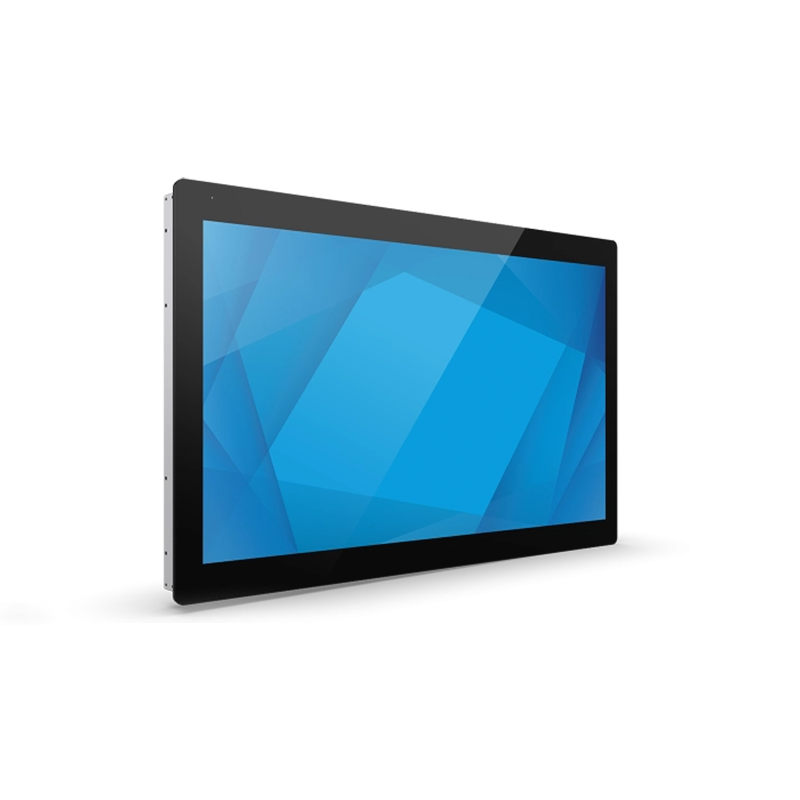

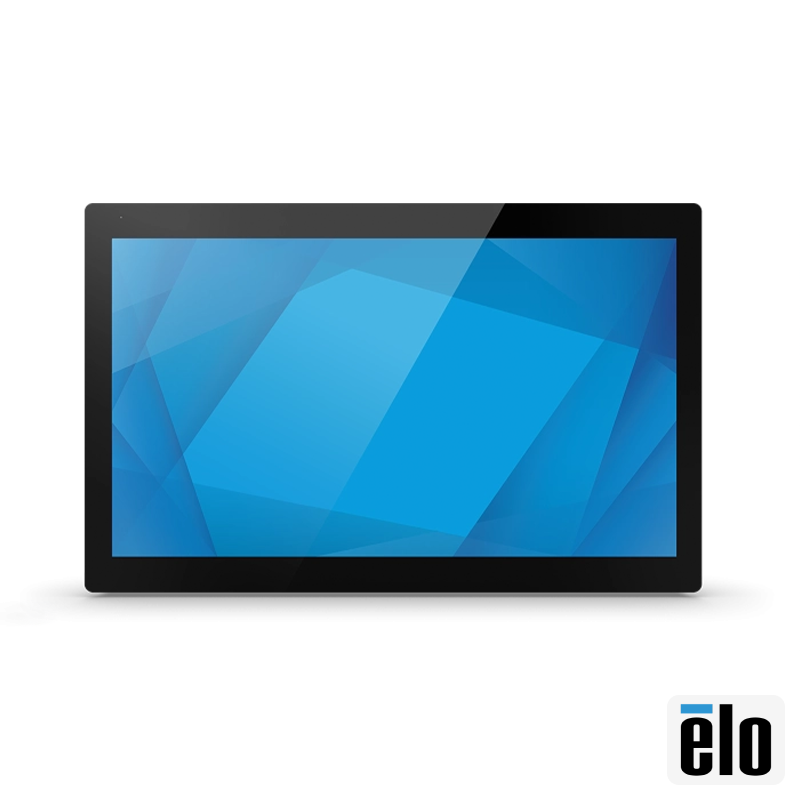

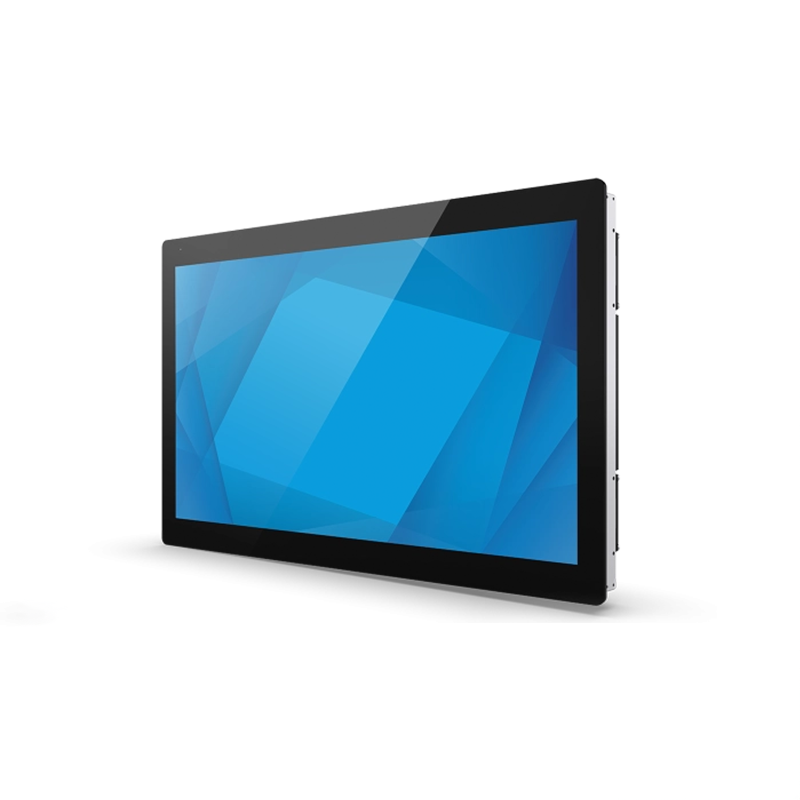

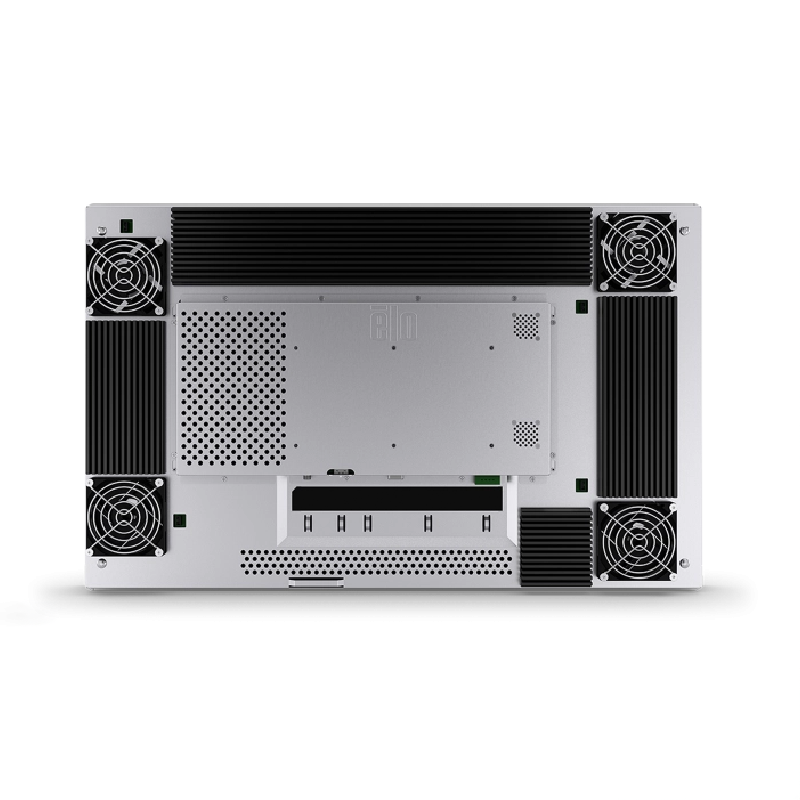

Elo 2799L 27" Outdoor Open Frame Touchscreen
Elo 2799L 27" Outdoor Open Frame Touchscreen
Elo Touch Solutions, Inc.
Only for B2B customers!
Couldn't load pickup availability
Product description
The Elo 2799L 27-inch Outdoor Open Frame Touchscreen is designed for 24/7 operation in demanding outdoor kiosk environments. With a brightness of up to 1500 nits and optically bonded glass, the display ensures excellent visibility even in direct sunlight and when viewed through polarized sunglasses.
The vandal-resistant IK10-rated design combined with support for IP66 and NEMA 4X protection (when installed in an enclosure) makes the 2799L ideal for harsh outdoor conditions. From payment terminals and ticketing machines to drive-through systems and EV charging stations, the display integrates easily into outdoor kiosk housings with its open-frame design and edge-to-edge glass.
Powered by Elo’s TouchPro® PCAP technology, the touchscreen supports 10-touch interaction and touch-through-glass functionality for up to 6 mm glass. With integrated temperature protection, ambient light sensing and support for wide operating temperatures, the 2799L delivers reliable performance for industrial and commercial outdoor applications.
Key Features
- 27" outdoor touchscreen display with 1500 nits brightness
- Sunlight-readable with polarized sunglasses compatibility
- TouchPro® PCAP 10-touch technology
- Touch-through-glass support (up to 6 mm)
- IK10 vandal-resistant glass
- Designed for IP66 / NEMA 4X installations
- Operating temperature: -20°C to 60°C
- 24/7 continuous operation
- Ambient light sensor and temperature protection
- Open frame design for kiosk integration
Specifications
| Model | Elo 2799L Outdoor Open Frame Touchscreen |
| Display size | 27-inch Active Matrix TFT LCD (LED) |
| Aspect ratio | 16:9 |
| Resolution | 1920 × 1080 |
| Active area | 597.9 × 336.3 mm |
| Brightness | LCD panel: 1500 cd/m² With PCAP touch: 1320 cd/m² |
| Contrast ratio | 1000:1 |
| Response time | 14 ms |
| Viewing angle | 178° horizontal / 178° vertical |
| Color support | 16.7 million colors |
| Touch technology | TouchPro® PCAP projected capacitive |
| Touch points | 10-touch (USB) / 2-touch via RS232 |
| Touch-through capability | Glass up to 6 mm Plastic up to 3 mm |
| Video interfaces | HDMI, VGA, DisplayPort |
| Touch interface | USB Type-B |
| Additional interfaces | RJ45 (OSD remote), GPIO control |
| Power input | 12–24V DC |
| Typical power consumption | On: 70W Standby: 1.23W Off: 0.26W |
| Dimensions (W × H × D) | 658 × 415 × 66 mm |
| Weight | 13.6 kg |
| Operating temperature | -20°C to 60°C |
| Storage temperature | -30°C to 80°C |
| Humidity | 10% – 90% operating |
| Protection | IK10 impact resistance |
| Mounting | VESA 200 × 100 mm Side mounting brackets |
| MTBF | 50,000 hours |
| Certifications | UL, FCC, CE, CB, VCCI, CCC, RCM, KCC, BSMI, EAC, RoHS, China RoHS, WEEE |
| Warranty | 2 years |
