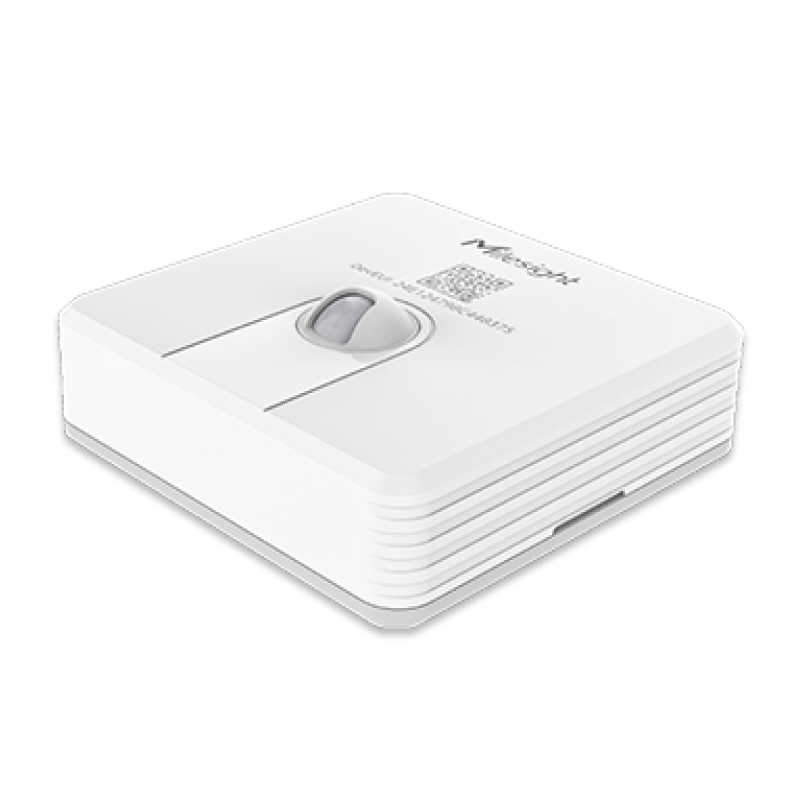

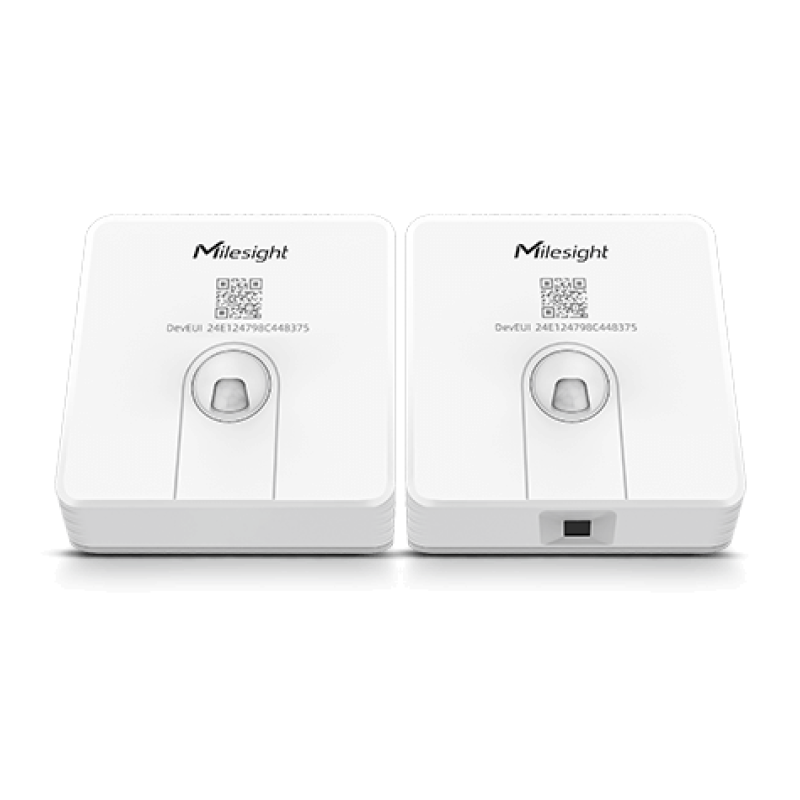

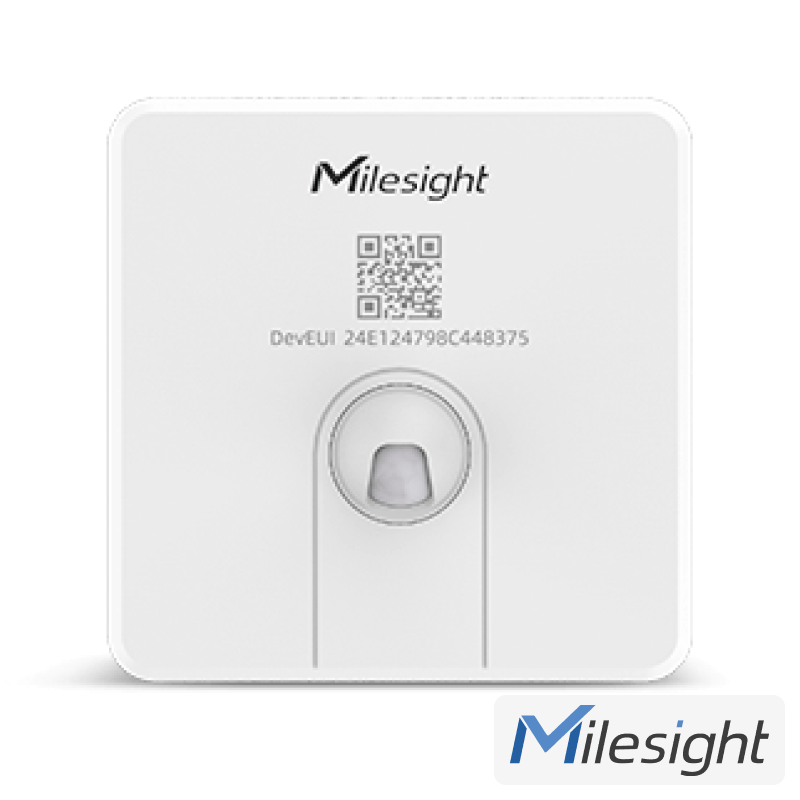

MileSight VS341 Desk Sensor (PIR + Heat)
MileSight VS341 Desk Sensor (PIR + Heat)
MileSight
Regular price
€66,00
Regular price
Sale price
€66,00
Quantity
Only for B2B customers!
Couldn't load pickup availability
MileSight VS341 Desk Sensor (PIR + Heat)
VS341 employs both highly sensitive PIR and thermopile sensors to accurately detect occupancy. The double detection mechanism fully captures the motions and temperature variations in its target areas and contributes to trustworthy results.
!!We recommend the VS341 and not the VS340!!
Occupancy Detection
| Technology | PIR & Thermopile |
| Recognition Rate | Up to 98%* |
| PIR Detection Area | 107 ° Horizontal, 107 ° Vertical |
| PIR Detection Distance | Within 1m |
| Thermopile Detection Area | 50° (50% level of sensitivity) |
Wireless Transmission
| Protocol | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/ IN865/ EU868/ RU864/ US915/ AU915/ KR920/ AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm |
| Mode | OTAA/ABP Class A |
Others
| Button | 1 x Power/Reset Button (Internal) |
| Indicator | 1 x Power/Reset Button (Internal) |
Physical Characteristics
| Power Supply | 1 x 4000 mAh ER18505 Li-SOCL2 Battery |
|
Battery Life** (1440 min interval + 100 Triggers per Day, LED Disabled, 25°C) |
Over 10 Years (SF7, EU868 & US915) Around 5.2 Years (SF10, EU868) Around 5.1 Years (SF10, US915) |
| Operating Temperature | -20°C ~ +60°C |
| Relative Humidity | 0 ~ 95% (Non-condensing) |
| Dimension | 73 x 73 x 26 mm ( 2.87 x 2.87 x 1.02 in) (Without PIR Cover) |
| Weight | 90g |
| Ingress Protection | IP30 |
| Color & Material | White + Grey, PC + ABS (Flame Retardant) |
| Installation | 3M Tape Mounting, Wall Screw Mounting |
*The temperature range of thermopiles to reach the best recognition rate is +10 to +30 °C.
**Tested under laboratory conditions and for guideline purposes only.
