ePaper Gateway
ePaper Gateway
Konferenztraum
Regular price
€550,00
Regular price
Sale price
€550,00
Quantity
Only for B2B customers!
Couldn't load pickup availability
Produktbeschreibung

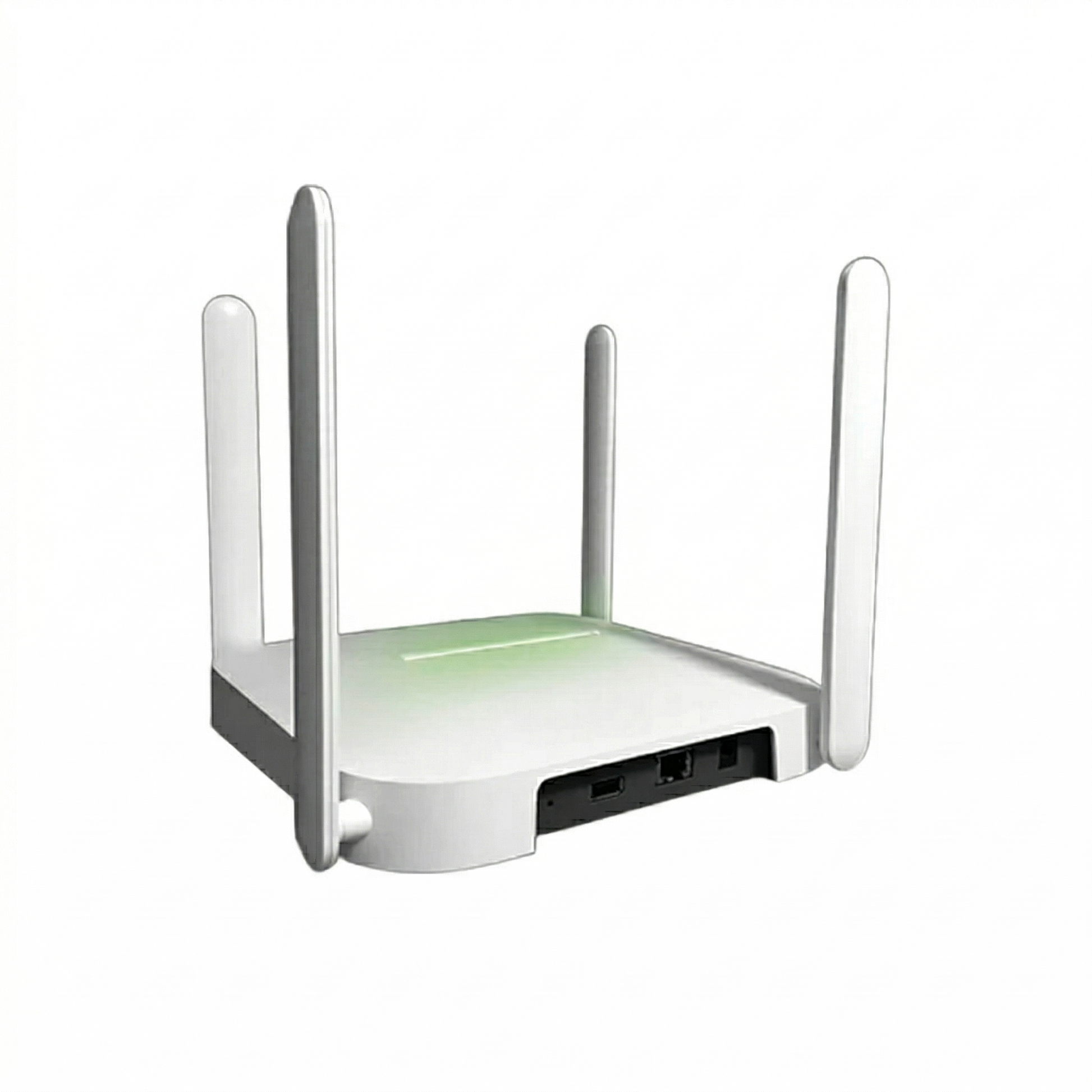

The ePaper Gateway is a powerful communication hub for managing and controlling large-scale installations of ePaper displays. Operating via Ethernet (10/100/1000 Mbps), the gateway enables secure and reliable 2.4 GHz wireless communication.
With a communication range of up to 25 meters (depending on the environment), the gateway supports up to 50,000 connected devices, making it suitable for corporate offices and workplace management systems.
The device supports Power over Ethernet (PoE – IEEE 802.3af) or an AUX DC input (5–12 V, 10 W), providing flexible installation options.
Spezifikationen
| Communication | Ethernet (10/100/1000 Mbit/s) / 2,4 GHz |
| Capacity | Up to 50.000 devices |
| Connectivity distance | Max. 25-meter radius depending on the environment, which is max. 1900 m² of office space in ideal conditions in an open space. Walls and obstacles are reducing the distance. |
| Size | 243 x 243 x 46 mm |
| Weight | 650 g |
| Material | Plastic (ABS) |
| Electricity supply | PoE (IEEE 802.3af) / AUX DC-Eingang (5–12 V, 10 W) |
| HF 2,4 GHz |
Frequency band: 2402–2480 MHz Antenna Type: external & internal Antenna gain: external 3,4 dBi / internal 3,2 dBi |
| Sub-GHz-HF |
Antennantyp: extern Frequency band: - Europa (CE): 863–868 MHz - Korea (KC): 917–923,5 MHz - FCC / Canada: 902–928 MHz Antenna gain: 4,7 dBi |
| Color | white |
| Warranty | 2 Years |
