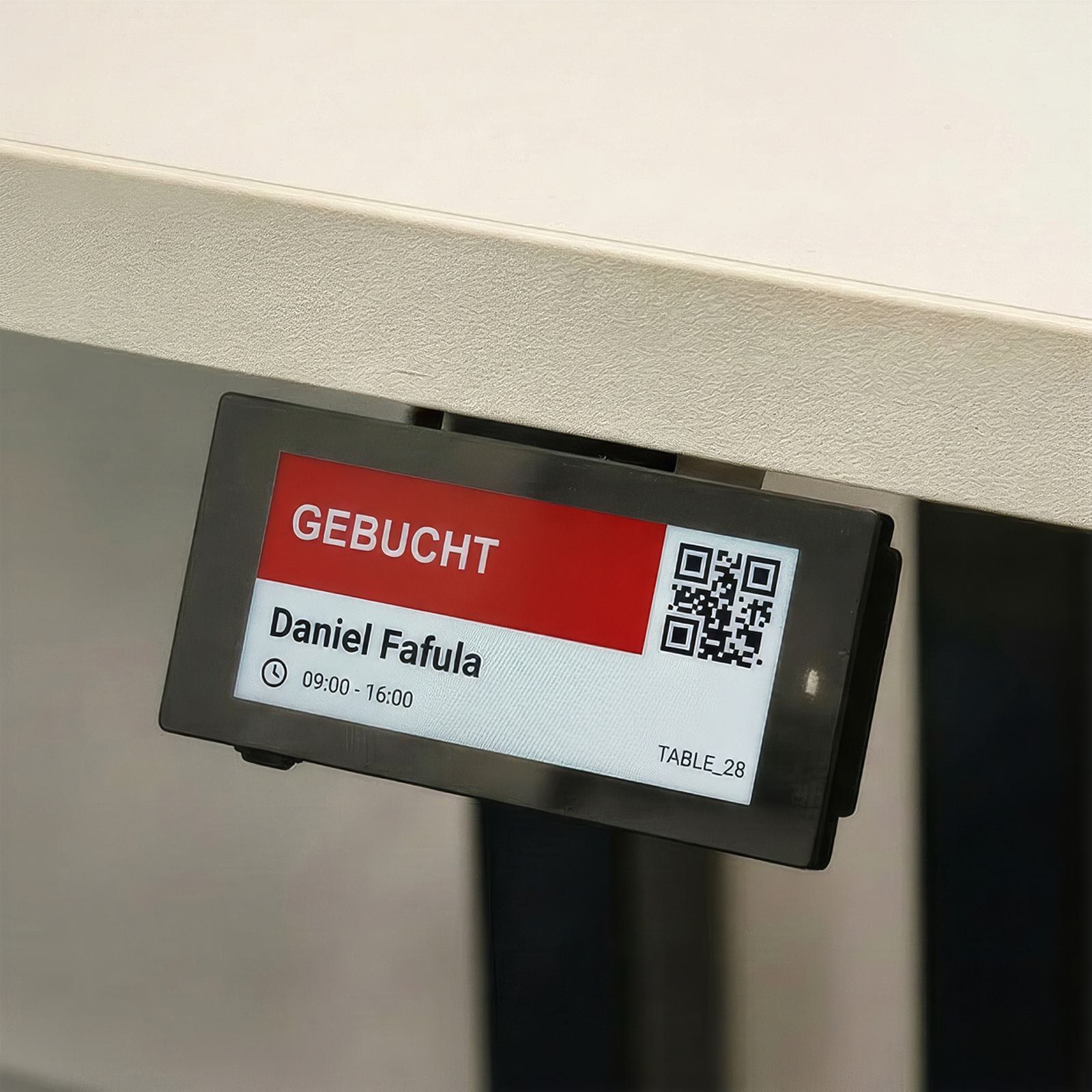

The desktop mounting bracket is designed for 2.9" eInk displays and allows
secure installation underneath a table or desk. The display is inserted into
the black bracket and secured with the included M3 set screw.
After the display has been inserted and fixed in place, the complete bracket
can be mounted underneath the table using the included adhesive pad or
suitable screws.

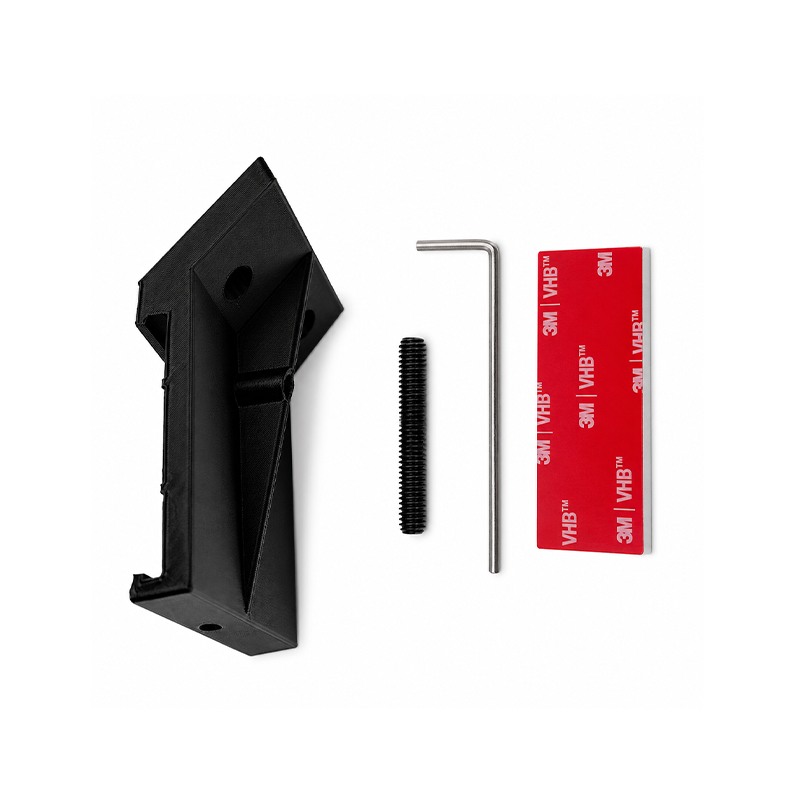

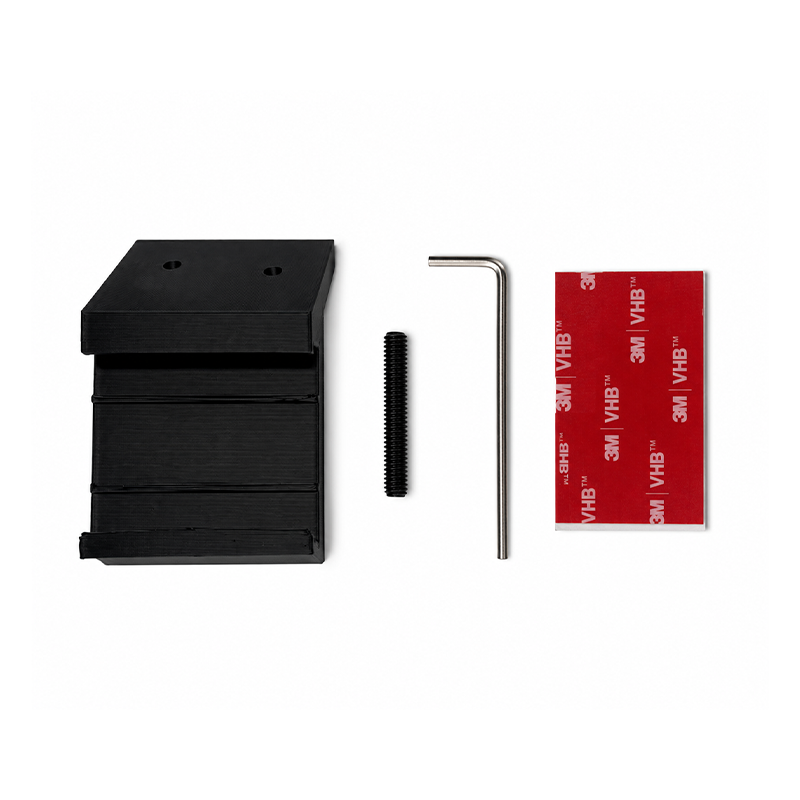

Scope of delivery
Black mounting bracket
M3 × 20 mm set screw
IS1.5 Allen key
40 × 30 mm adhesive pad
Installation note
First slide the 2.9" eInk display into the bracket and secure it with the
M3 set screw. Only after the display has been fixed inside the bracket,
mount the complete unit underneath the table.
The bracket can be attached using the included adhesive pad or suitable
screws. Screws for fixing the bracket to the table are not included.
